Description

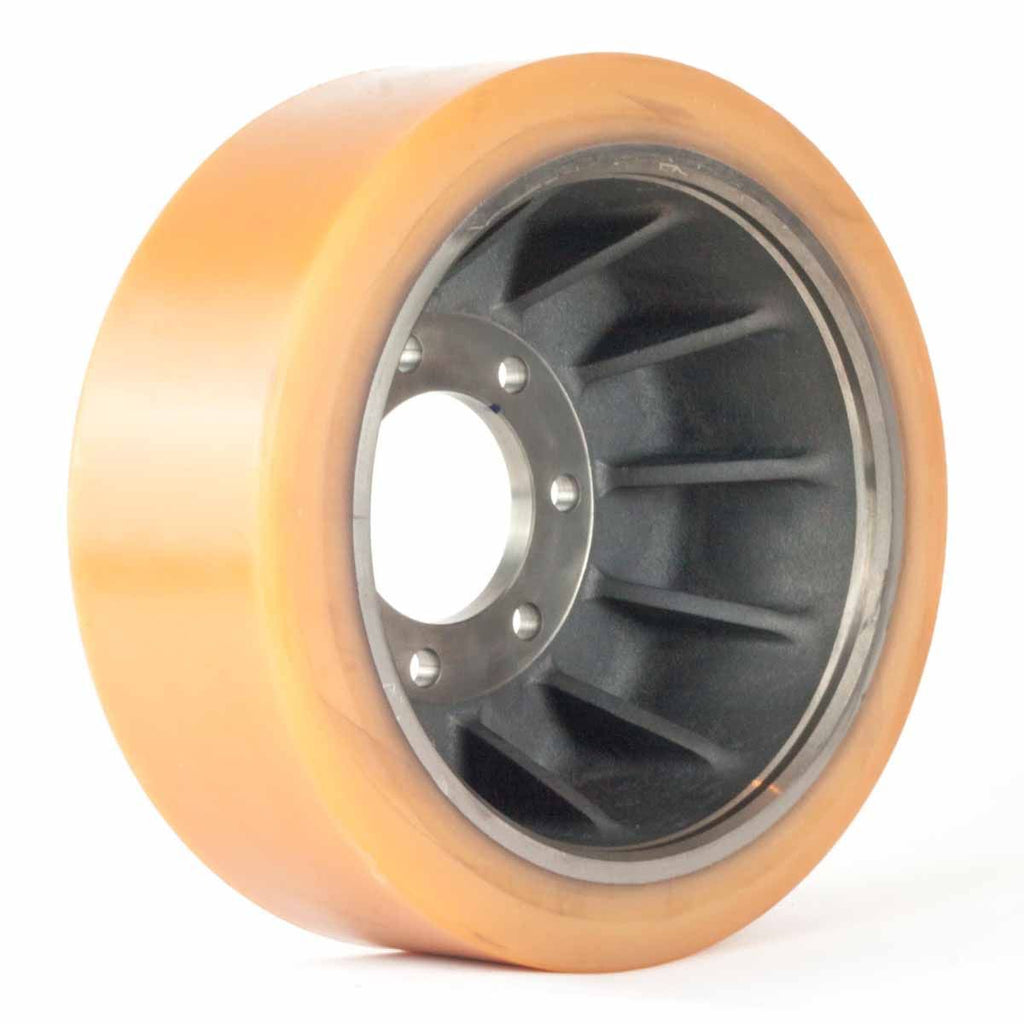

The Jungheinrich Drive Wheel 343mm x 114mm x 90mm 51754648 is a high quality wheel manufactured in Germany by Rader Vogel.
- Tread Material: Vulkollan
- Wheel Diameter: 343mm
- Tread Width: 114mm
- Rim Diameter: 276mm
- Bore Hole Diamater: 90mm
- Pitch Circle Diameter: 125mm
- Stud Hole Diameter: 15mm
- Number of Studs: 7
- Bolt Hole Type: Cylindrical
- Tread Hardness: 93 Shore A
- Hub Material: Cast Iron
- Load Capacity: 3360kg
The Jungheinrich Drive Wheel 343mm x 114mm x 90mm 51754648 is suitable for the following machines:-
-
Jungheinrich ETV 214 (replaces part number 51331328)
- Jungheinrich ETV 216 (replaces part number 50262633)
