Description
The Lift Mate mobile scissor table range has been designed, developed and built to give long service with minimum maintenance required.

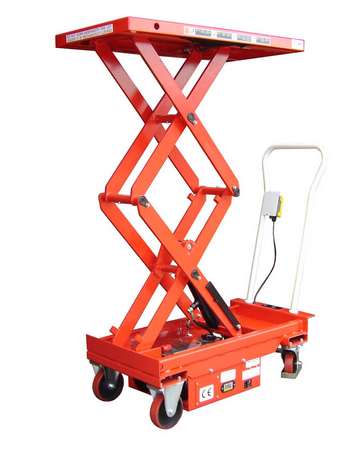

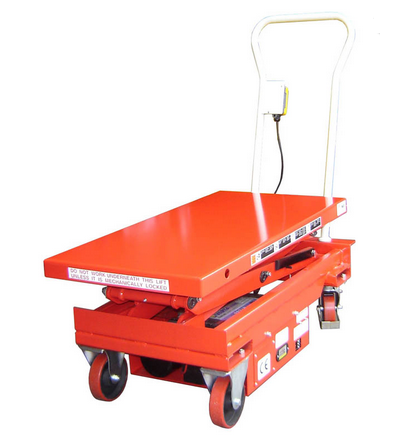

The 300kg electric double scissor table is highly manoeuvrable & easy to use.
- Battery electric powered operation
- 12V maintenance free battery
- 700W dc power pack
- Time to maximum height: 14 - 17 seconds
- Overall length including pedal: 1230mm
- Can be used safely at any height
- Fitted with two total stop brakes as standard to prevent the table from moving when loading and unloading
- Fitted with an overload valve
- Hard wearing and non-marking polyurethane tyres prevent damage to floors
- Swivel wheels fitted with thread guards
- Epoxy powder coated finish for durability
- Issued with a test certificate in conformance with EU standard EN 1570
| Part Number | ESL30D |
|---|---|
| Manufacturer | Lift Mate |
| Lifting Capacity |
300kg |
| Platform Dimensions |
Width: 520mm Length: 1010mm |
| Closed Height |
495mm |
| Raised Height |
1600mm |
| Handle Height |
1180mm |
| Wheel Diameter |
150mm |
|

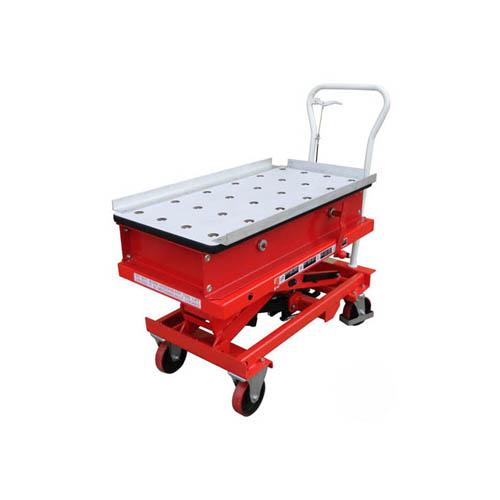

Ball Transfer Top Attachment |
Platform Width: 560mm Platform Length: 1010mm Base Width: 500mm Height: 180mm Height (with guards): 220mm |
|

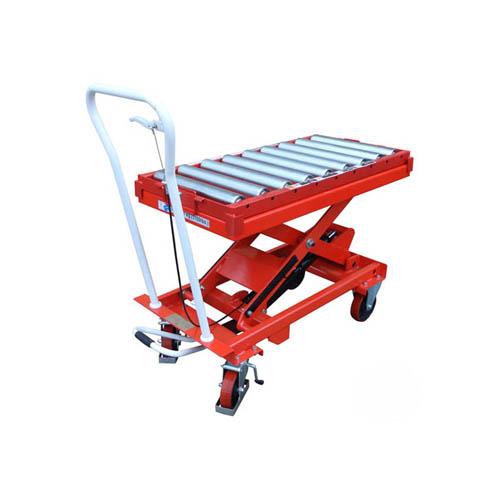

Straight Roller Track Attachment |
Width: 500mm Length: 1010mm Overall Width: 535mm Overall Length: 1025mm Height: 50mm Overall Height: 100mm Number of Rollers: 9 |
|

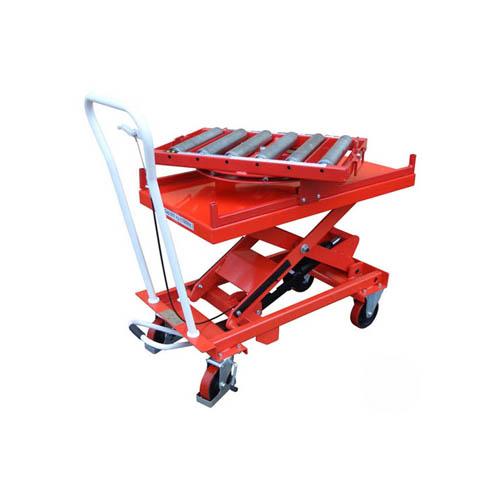

Turntable Roller Track Attachment |
Capacity: 200kg Top Width: 505mm Top Length: 710mm Rotating Base Width: 535mm Height: 100mm Number of Rollers: 6 |
